DJI Mavic 3E 3T Drohne technische Details

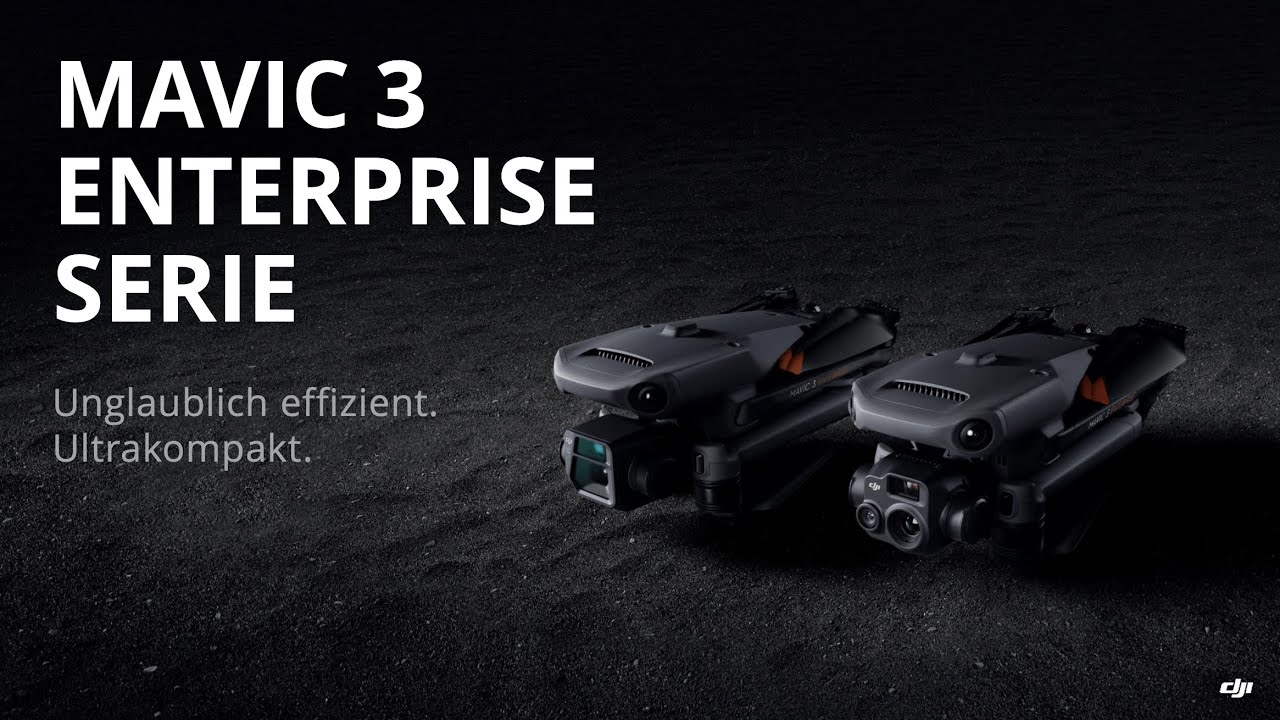

DJI Mavic 3 Enterprise Serie

Ich mag Technologie und Drohnen und deren Möglichkeiten und Einsatzzwecke sind grundlegend interessant und spannend. Ich selber hatte mal eine DJI Mavic Air im coolen Combo Paket. Seither bin ich aus zeitlichen Gründen raus aus dem Thema.

Doch vor kurzem holte es mich wieder ein, als ich zuerst eine Doku über das Thema sah und heute den Artikel “Ukraine setzt 300 DJI Mavic-3T-Drohnen an der Ostfront ein” auf Heise gelesen hatte. So kann die Drohne mit hochauflösenden Kameras, Scheinwerfer, Lautsprecher und Wärmebildkamera ausgestattet werden und so auch bei Rettungseinsätzen oder Brandbekämpfung helfen.

Meine Neugierde nach der DJI Mavic 3T war geweckt, sodass ich hier ein paar technische Details auflisten werde. Nebenher gibt es weitere Hersteller die midestens ebensolche Drohnen anbieten und vertreiben, es ist also kein Loblied auf DJI….

DJI Mavic 3E / 3T Video Serie

Die nachfolgenden Hersteller Videos zeigen die unterschiedlichen Einsatzscenarien für die Mavic 3E / 3T Enterprise Drohne. Sehr spannend und egal ob bei der Agrarwirtschaft, der Untersuchung von Verkehrsunfällen und Naturkatastrophen oder der Planung von Industrie- und Verkehrsanlagen, die Drohne kann helfen um so nicht nur Kosten zu sparen, sondern auch effektiver zu agieren.

DJI Mavic 3E und 3T Daten

DJI bietet bei den Enterprise Drohnen zwei Versionen, die Mavic 3E und 3T.

Aircraft

EigenschaftDJI Mavic 3EDJC Mavic 3T
Weight (with propellers, without accessories) [1]915 g920 g
Max Takeoff Weight1,050 g1,050 g
DimensionsFolded (without propellers): 221×96.3×90.3 mm (L×W×H)
Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance380.1 mm380.1 mm
Max Ascent Speed6 m/s (Normal Mode)
8 m/s (Sport Mode)
6 m/s (Normal Mode)
8 m/s (Sport Mode)
Max Descent Speed6 m/s (Normal Mode)
6 m/s (Sport Mode)
6 m/s (Normal Mode)
6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind)15 m/s (Normal Mode)
Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
15 m/s (Normal Mode)
Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
Max Wind Speed Resistance

12 m/s [3]12 m/s [3]
Max Take-off Altitude Above Sea Level6000 m (without payload)6000 m (without payload)
Max Flight Time (no wind)45 mins [4]45 mins [4]
Max Hover Time (no wind)38 mins38 mins
Max Flight Distance32 km32 km
Max Tilt Angle30° (Normal Mode)
35° (Sport Mode)
30° (Normal Mode)
35° (Sport Mode)
Max Angular Velocity200°/s200°/s
GNSSGPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
Hovering AccuracyVertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
Operating Temperature Range-10° to 40° C (14° to 104° F)-10° to 40° C (14° to 104° F)
Internal StorageN/AN/A
Motor Model20082008
Propeller Model9453F Propellers for Enterprise9453F Propellers for Enterprise
BeaconBuilt into the aircraftBuilt into the aircraft
DJI Mavic 3E/3T Aircraft Specs

Wide Camera

EigenschaftDJI Mavic 3EDJI Mavic 3T
Sensor4/3 CMOS, Effective pixels: 20 MP1/2-inch CMOS, Effective pixels: 48 MP
LensFOV: 84°
Format Equivalent: 24 mm
Aperture: f/2.8-f/11
Focus: 1 m to ∞
FOV: 84°
Format Equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞
ISO Range100-6400100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 s
Mechanical Shutter: 8-1/2000 s
Electronic Shutter: 8-1/8000 s
Max Image Size5280×39568000×6000
Still Photography ModesSingle: 20 MP
Timed: 20 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
JPEG+RAW: 3/5/7/10/15/20/30/60 s
Smart Low-light Shooting: 20 MP
Panorama: 20 MP (raw image)
Single: 12 MP/48 MP
Timed: 12 MP/48 MP
JPEG: 2/3/5/7/10/15/20/30/60 s*
Panorama: 12 MP (raw image); 100 MP (stitched image)
Smart Low-light Shooting: 12 MP

* Shooting 48MP photo does not support 2s interval
Video ResolutionH.264
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
H.264
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
Bitrate4K: 130 Mbps
FHD: 70 Mbps
4K: 85 Mbps
FHD: 30 Mbps
Supported File FormatsexFATexFAT
Photo FormatJPEG/DNG (RAW) JPEG
Video FormatMP4 (MPEG-4 AVC/H.264)MP4 (MPEG-4 AVC/H.264)
DJI Mavic 3E/3T Wide Camera Specs

Tele Camera

EigenschaftDJI Mavic 3EDJI Mavic 3T
Sensor1/2-inch CMOS, Effective pixels: 12 MP1/2-inch CMOS, Effective pixels: 12 MP
LensFOV: 15°
Format Equivalent: 162 mm
Aperture: f/4.4
Focus: 3 m to ∞
FOV: 15°
Format Equivalent: 162 mm
Aperture: f/4.4
Focus: 3 m to ∞
ISO Range100-6400100-25600
Shutter SpeedElectronic Shutter: 8-1/8000 sElectronic Shutter: 8-1/8000 s
Max Image Size4000×30004000×3000
Photo FormatJPEGJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)MP4 (MPEG-4 AVC/H.264)
Still Photography ModesSingle: 12 MP
Timed: 12 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Low-light Shooting: 12 MP
Single: 12 MP
Timed: 12 MP
JPEG: 2/3/5/7/10/15/20/30/60 s
Smart Low-light Shooting: 12 MP
Video ResolutionH.264
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
H.264
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
Bitrate4K: 130 Mbps
FHD: 70 Mbps
4K: 85 Mbps
FHD: 30 Mbps
Digital Zoom8x (56x hybrid zoom)8x (56x hybrid zoom)
DJI Mavic 3E/3T Wide Camera

Sensing

EigenschaftDJI Mavic 3E / 3T
TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
ForwardMeasurement Range: 0.5-20 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, Vertical 103°
BackwardMeasurement Range: 0.5-16 m
Effective Sensing Speed: Flight Speed ≤12 m/s
FOV: Horizontal 90°, Vertical 103°
LateralMeasurement Range: 0.5-25 m
Effective Sensing Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, Vertical 85°
UpwardMeasurement Range: 0.2-10 m
Effective Sensing Speed: Flight Speed ≤6 m/s
FOV: Front and Back 100°, Left and Right 90°
DownwardMeasurement Range: 0.3-18 m
Effective Sensing Speed: Flight Speed ≤6 m/s
FOV: Front and Back 130°, Left and Right 160°
Operating EnvironmentForward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)
Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
DJI Mavic 3E/3T Sensing

Video Transmission

EigenschaftDJI Mavic 3EDJI Mavic 3T
Video Transmission SystemDJI O3 Enterprise TransmissionDJI O3 Enterprise Transmission
Live View QualityRemote Controller: 1080p/30fpsRemote Controller: 1080p/30fps
Operating Frequency 2.400-2.4835 GHz
5.725-5.850 GHz
2.400-2.4835 GHz
5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Max Transmission Distance (Obstructed) Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed15 MB/s (with DJI RC Pro Enterprise)15 MB/s (with DJI RC Pro Enterprise)
Latency (depending on environmental conditions and mobile device)Approx. 200 msApprox. 200 ms
Antenna4 Antennas, 2T4R4 Antennas, 2T4R
Transmission Power (EIRP)2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
DJI Mavic 3E/3T Video Transmission

Battery

EigenschaftDJI Mavic 3E / 3T
Capacity5000 mAh
Standard Voltage15.4 V
Max Charging Voltage17.6 V
TypeLiPo 4S
Chemical SystemLiCoO2
Energy77 Wh
Weight335.5 g
Charging Temperature5° to 40° C (41° to 104° F)

Alle Infos beim Hersteller unter: DJI Mavic 3 Enterprise Series – Your Everyday Commercial Drone – DJI
